Infective Endocarditis

2026

Pathology Infographic

Created using Adobe Illustrator, Photoshop, Procreate

Supervisor: Dave Mazierski, Dr. John Wong

Audience: General scientific audience

Format: 2-page magazine spread

Project Description

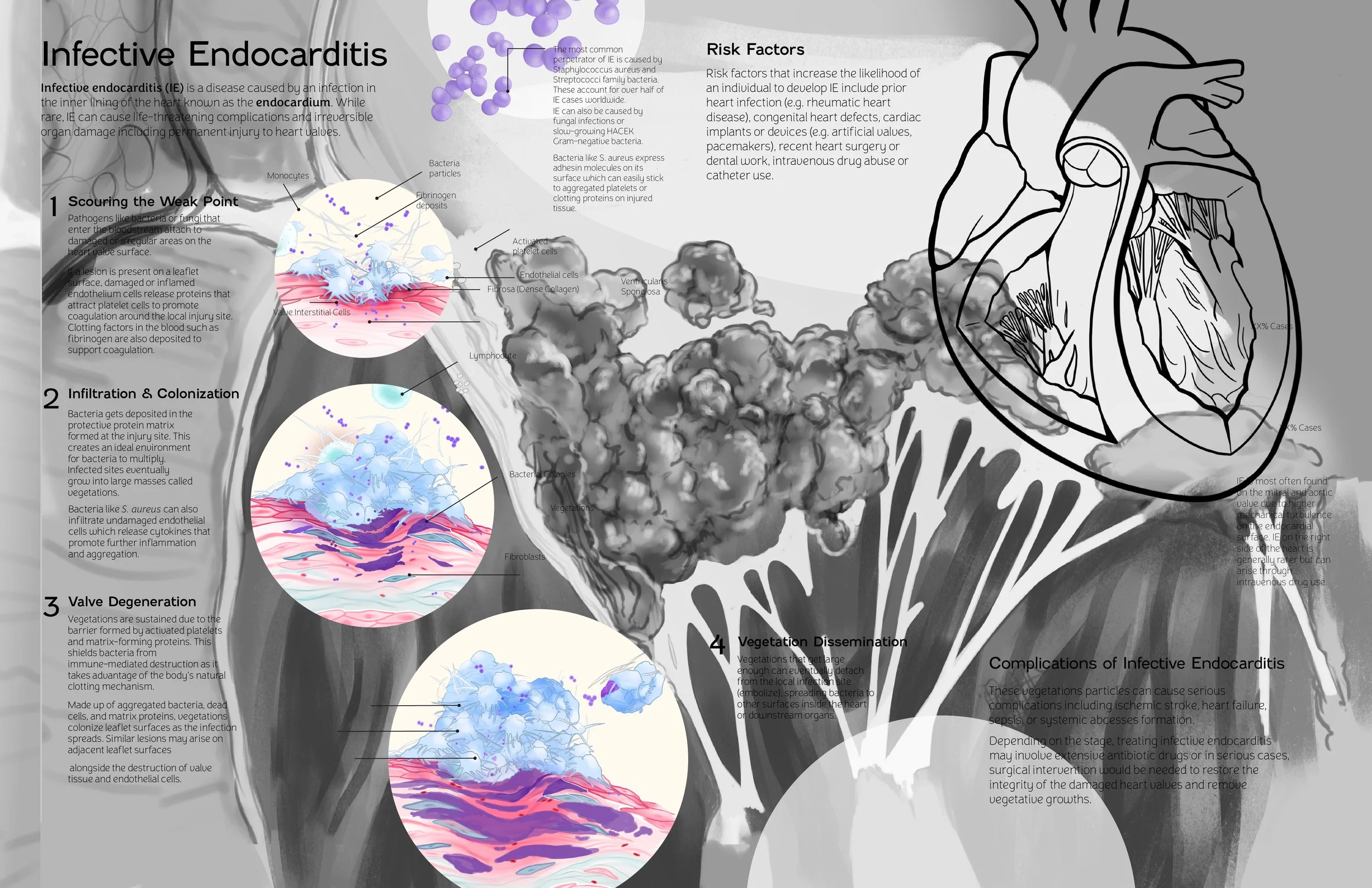

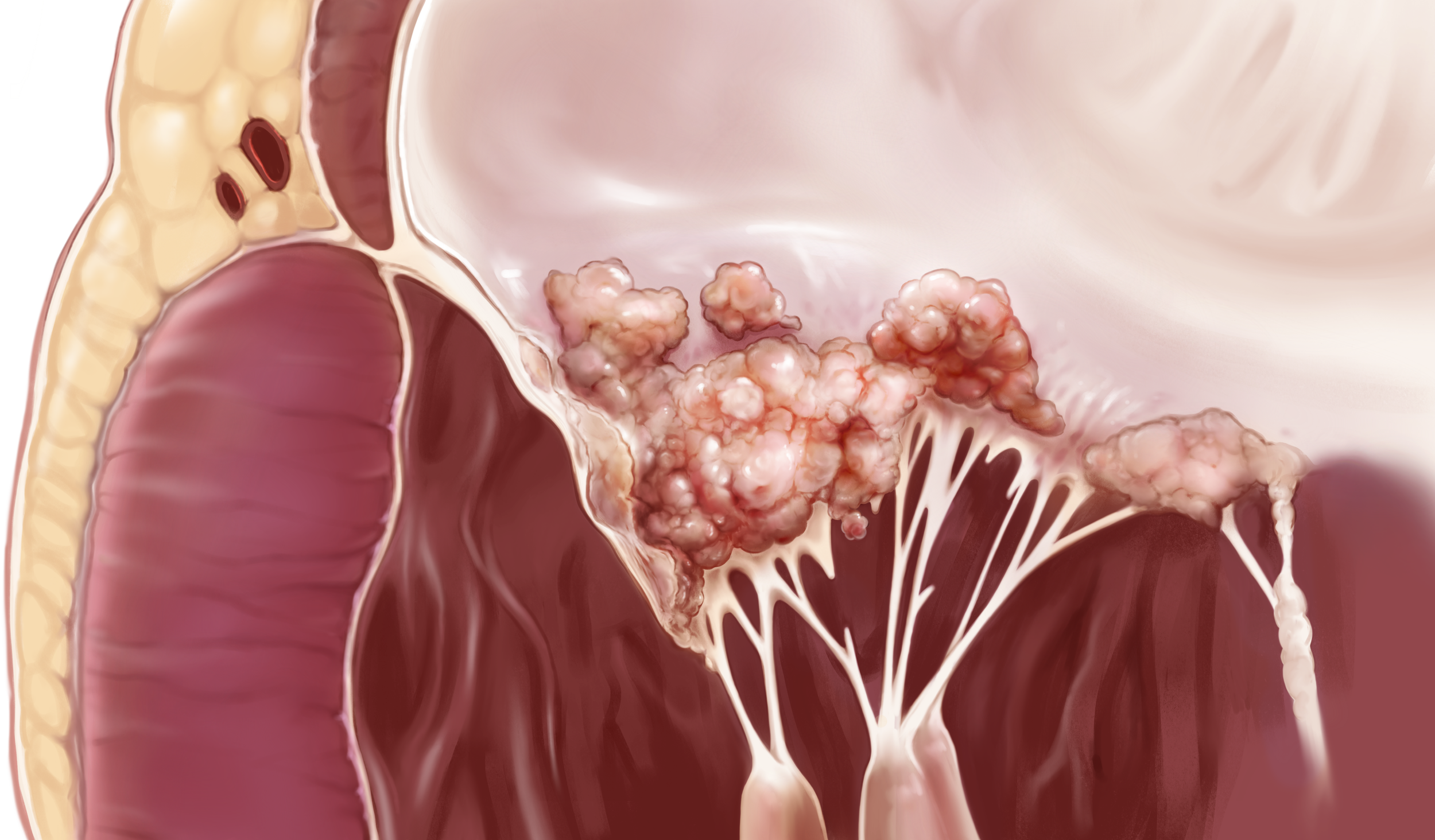

Visualizing the Pathophysiology of Infective Endocarditis

Infective Endocarditis (IE) is a rare, but deadly infection that affects the inner lining of the heart called the endocardium. This two-page magazine spread illustrates the progression of this disease by highlighting the key players and events that facilitate the colonization, proliferation and eventual destruction of heart valves if left untreated.

Researching the Pathophysiology of IE

The development of IE carries implications across the molecular, cellular, tissue, and system level. Factors at each level can be hijacked when an infection occurs which signals the breadth of visual approaches to explain the development of this pathology. While researching the literature surrounding this topic, I became fascinated by how pathogens like Staphylococcus aureus hijack normal cellular responses to injury and healing to create the perfect storm of events that sustain its colonization.

Thus, I wanted to craft the narrative of this pathophysiology by not only explaining the cellular events upon infection, but also how these effects compound over time — leading up to the consequences you see on the tissue and systemic scale.

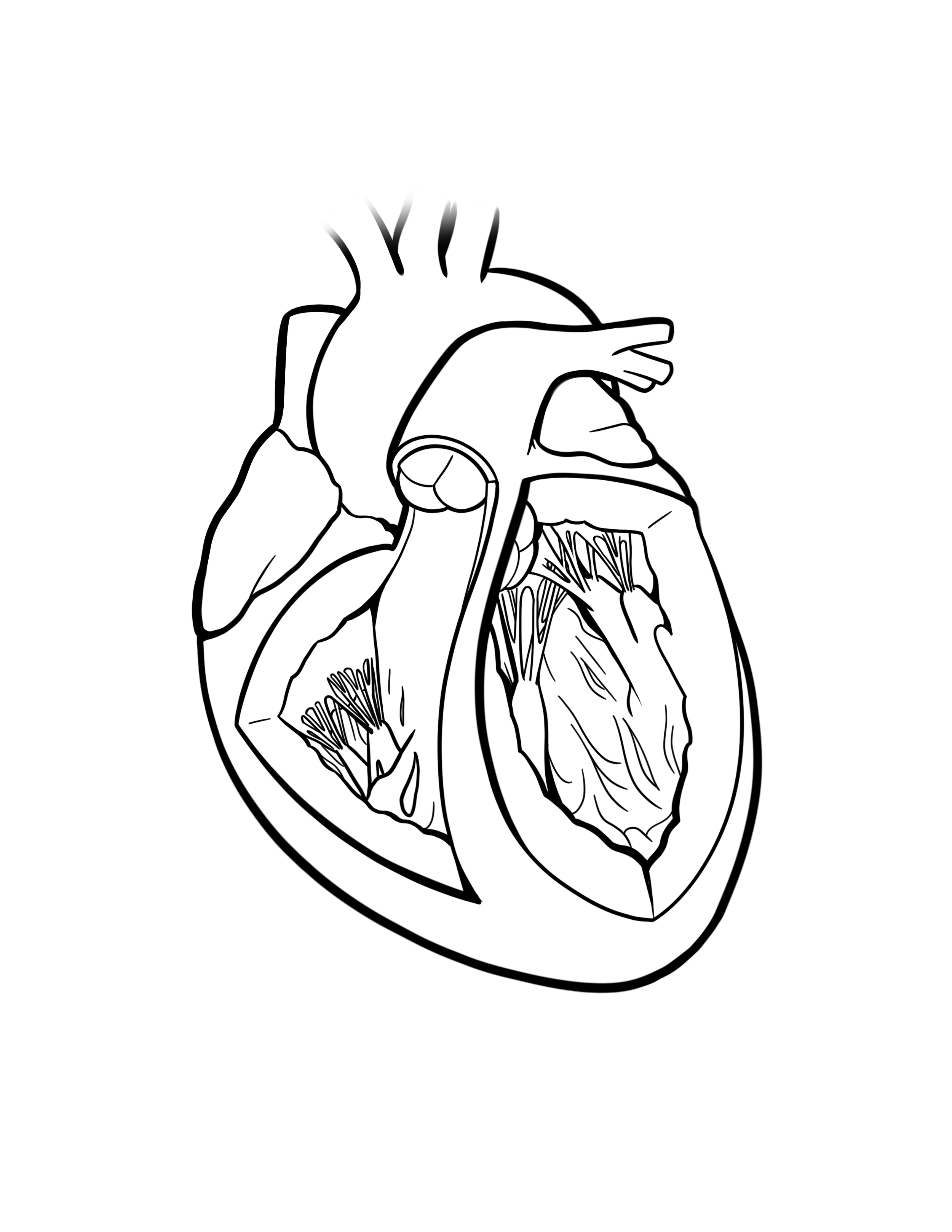

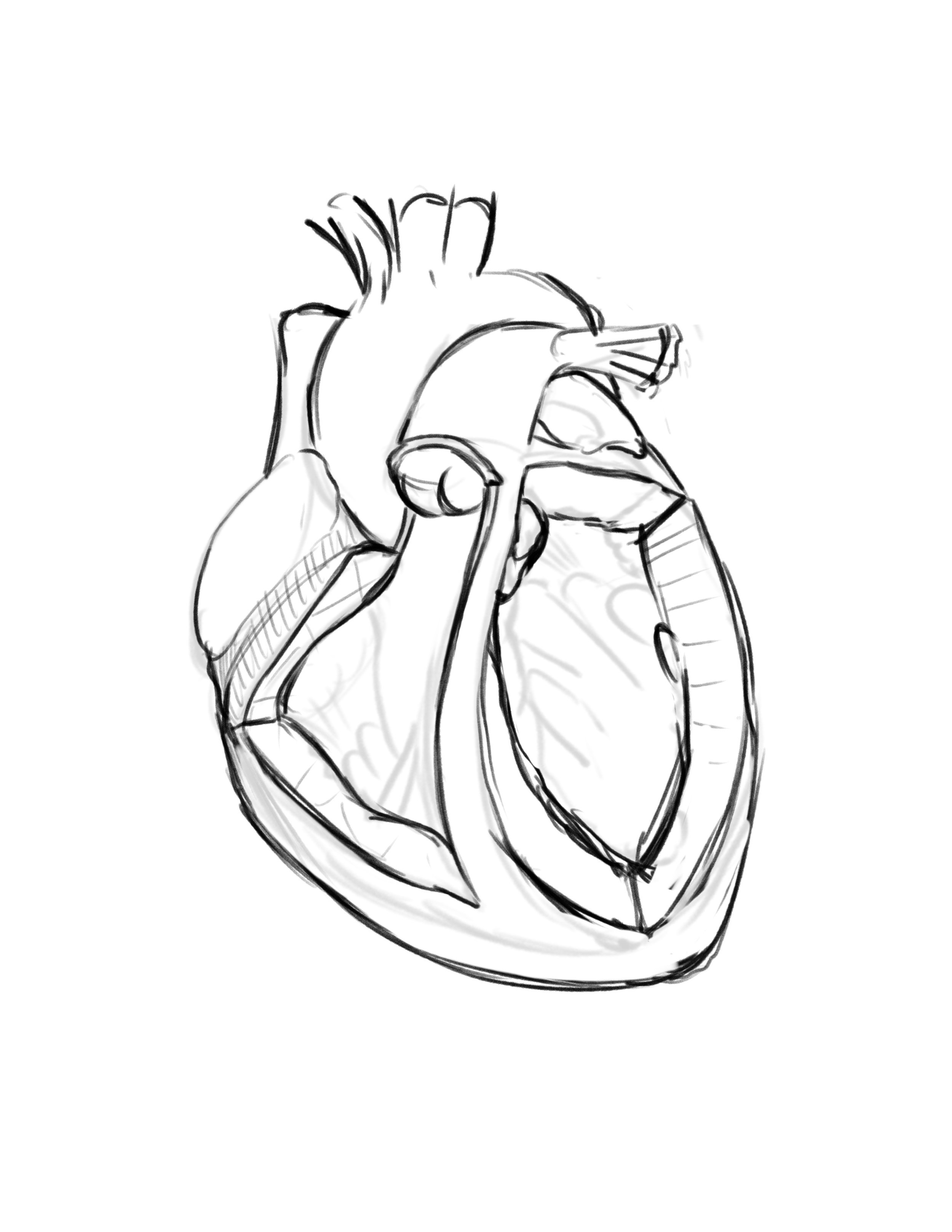

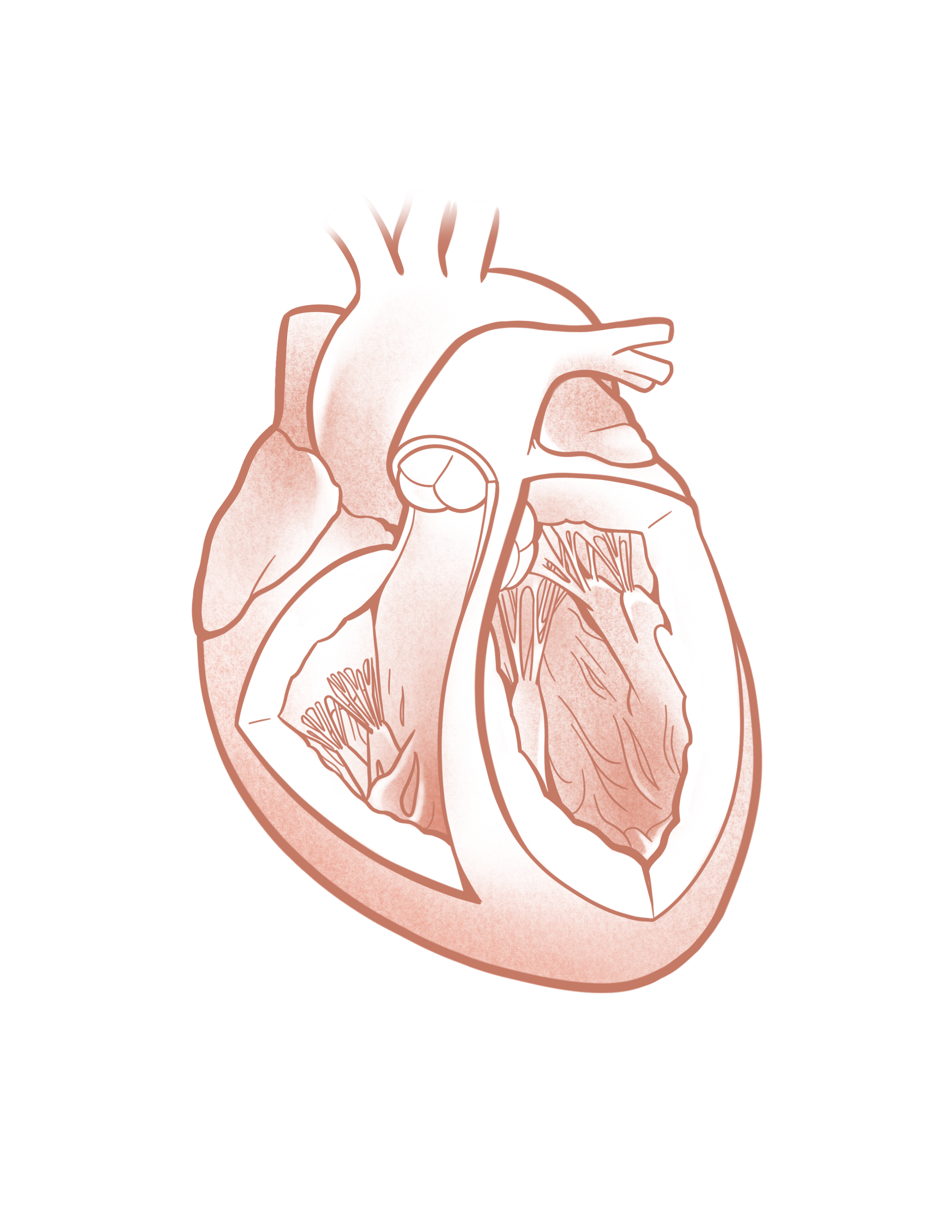

Meanwhile, I collected reference photos to study the unique textures and appearances of heart tissue, as well as images of diseased tissue.

Tissue Studies

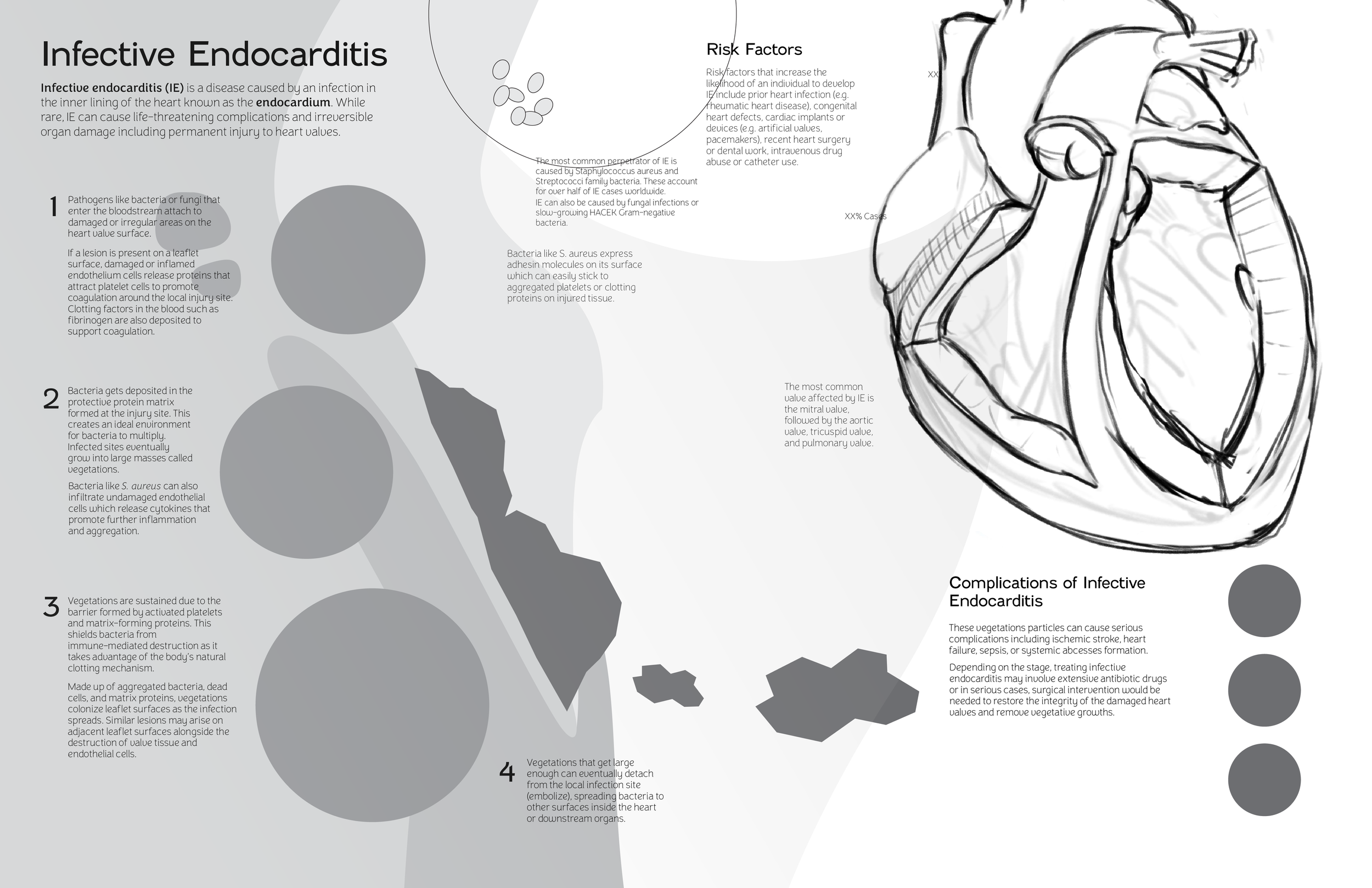

Insets & Secondary Graphics Process

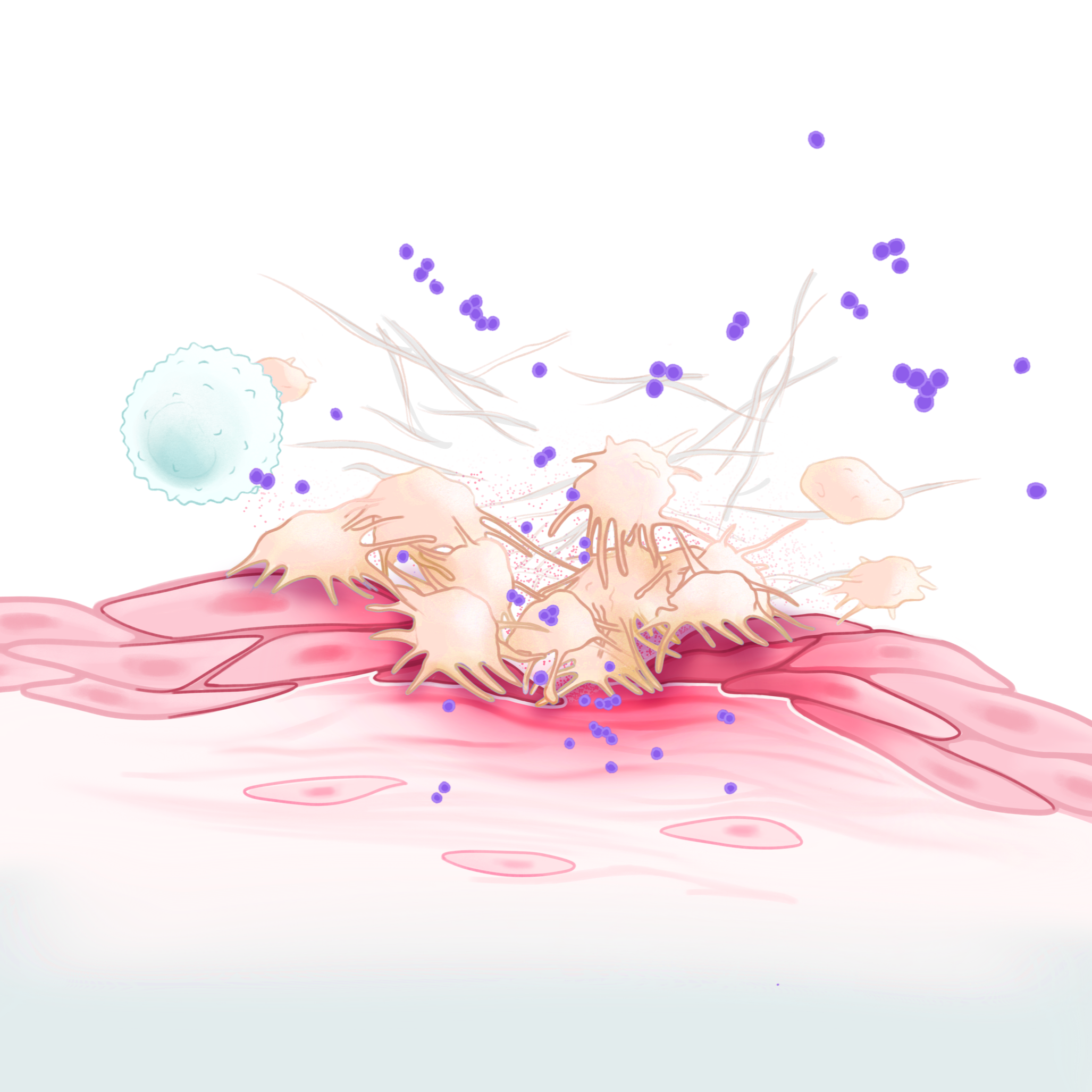

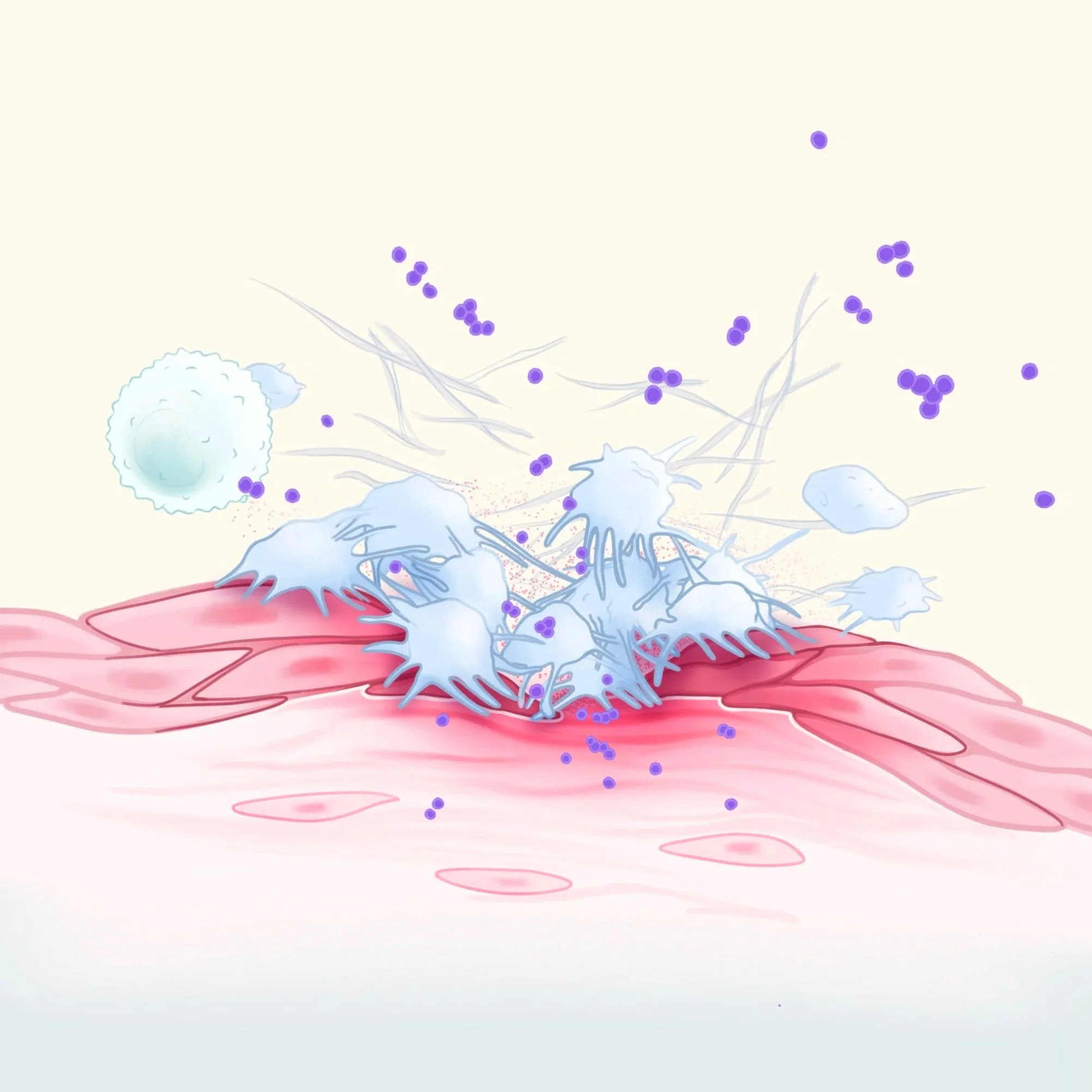

Progression of IE Insets

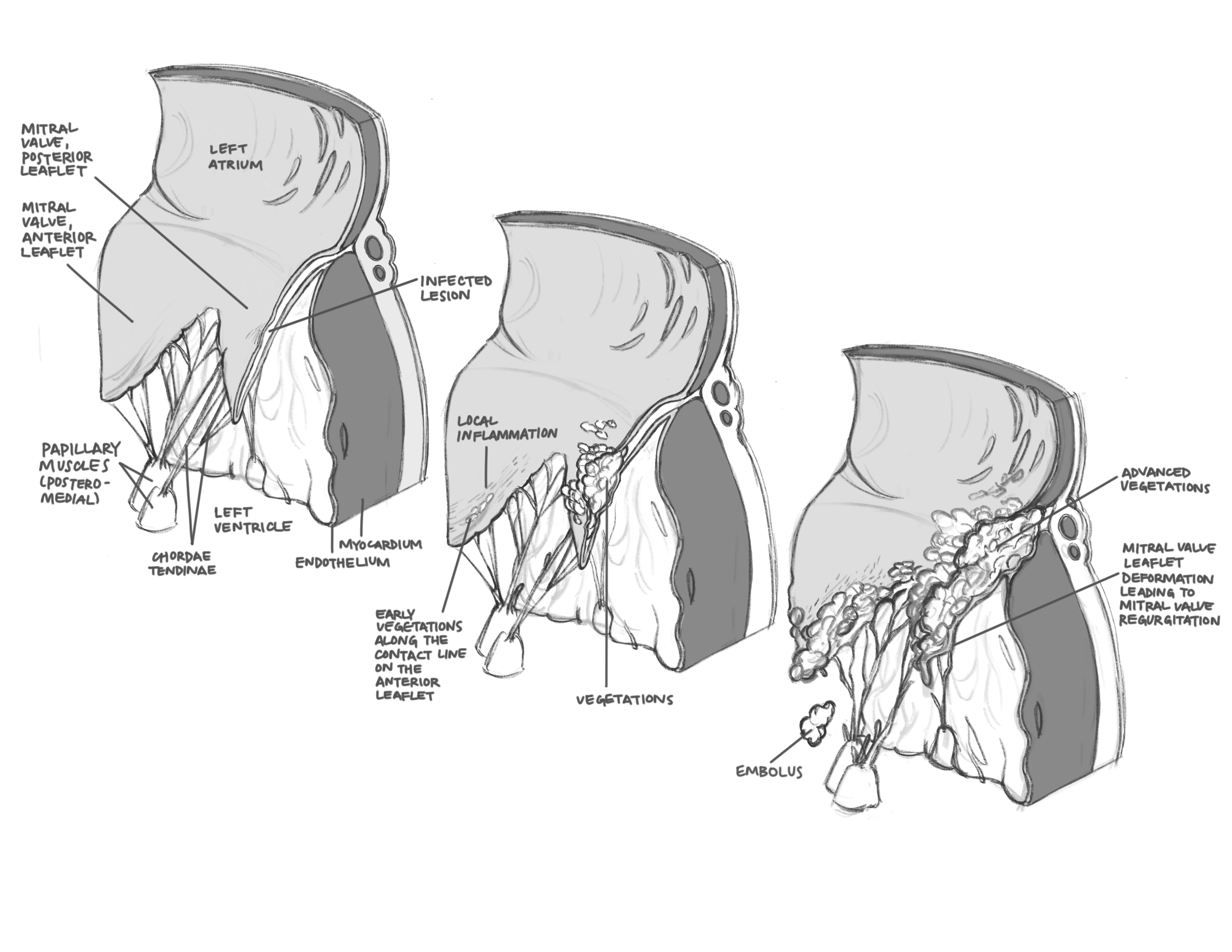

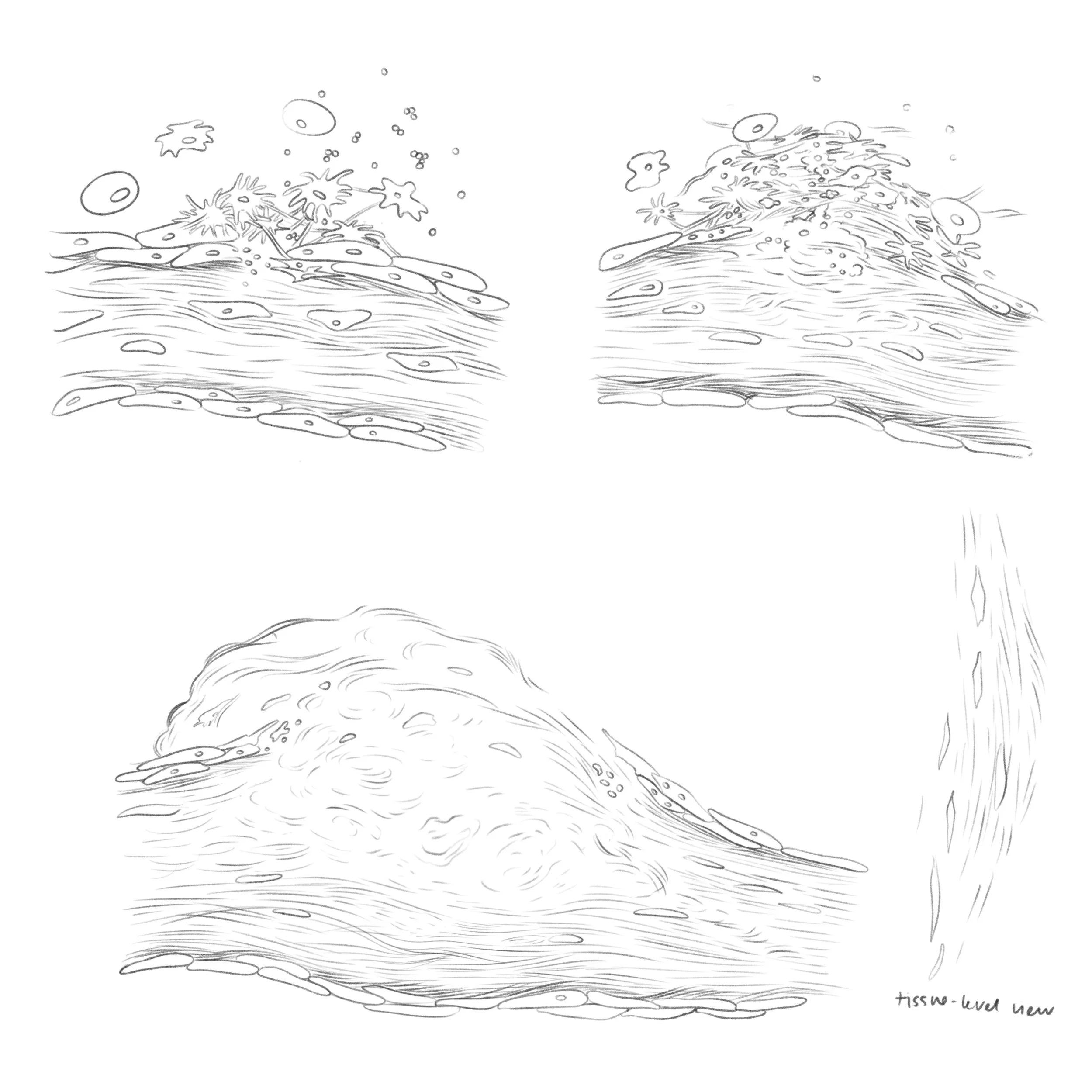

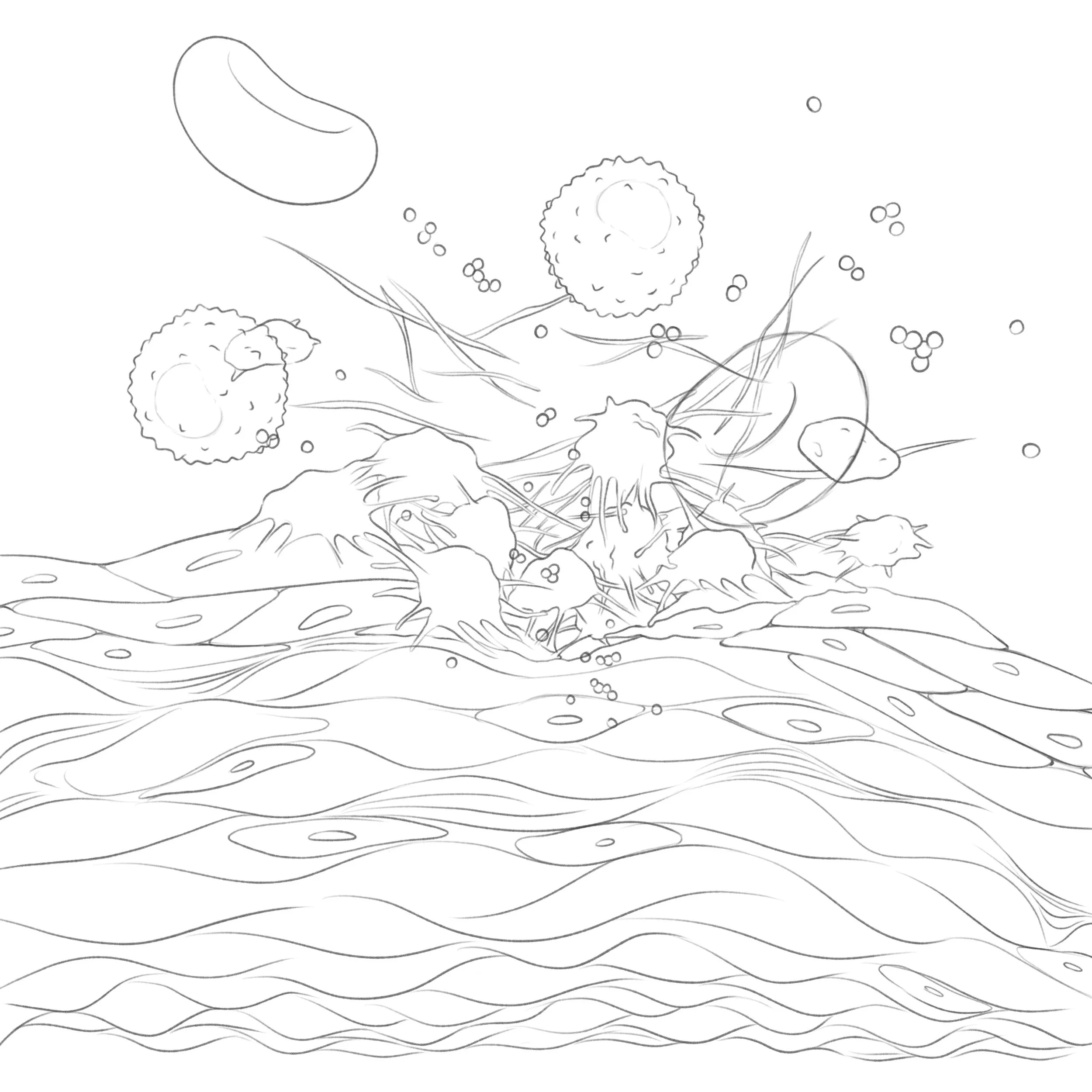

Initial sketch detailing the three key stages of the pathophysiology progression, showing the main cell types involved. These include activated platelets, lymphocytes, endothelial cells, as well as fibrin proteins to illustrate the coagulation process.
